JEE Main 2023 — Structure of Atom Question with Solution
JEE Main 2023 (24 Jan Shift 2)
Question

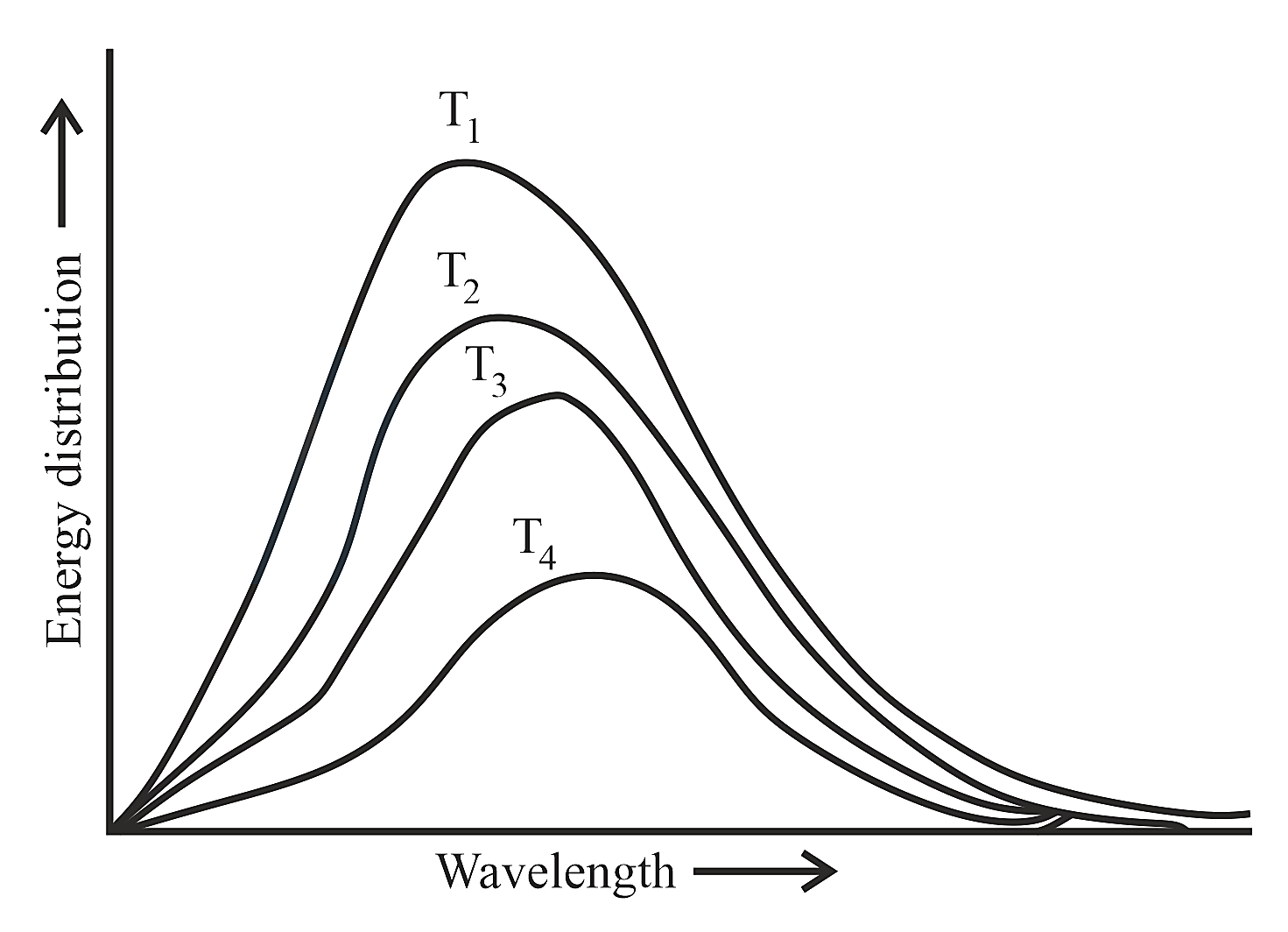

Following figure shows spectrum of an ideal black body at four different temperatures. The number of correct statement/s from the following is _______.

A. T4 > T3 > T2 > T1
B. The black body consists of particles performing simple harmonic motion.
C. The peak of the spectrum shifts to shorter wavelength as temperature increases.
D.
E. The given spectrum could be explained using quantisation of energy
Enter your answer
Show full solutionCorrect answer: 2
Step-by-step explanation

The spectrum of Black body radiation is explained using quantization of energy. With increase in temperature, peak of spectrum shifts to shorter wavelength or higher frequency. Thus, for above graph
