JEE Main 2017 — Circle Question with Solution

JEE Main 2017 (08 Apr Online)

Question

If two parallel chords of a circle, having diameter 4 units, lie on the opposite sides of the center and subtend angles cos-1⁡17 and sec-1⁡7 at the center respectively, then the distance between these chords is:

Choose an option

Show full solutionCorrect option: A
Correct answer
A87

Step-by-step explanation

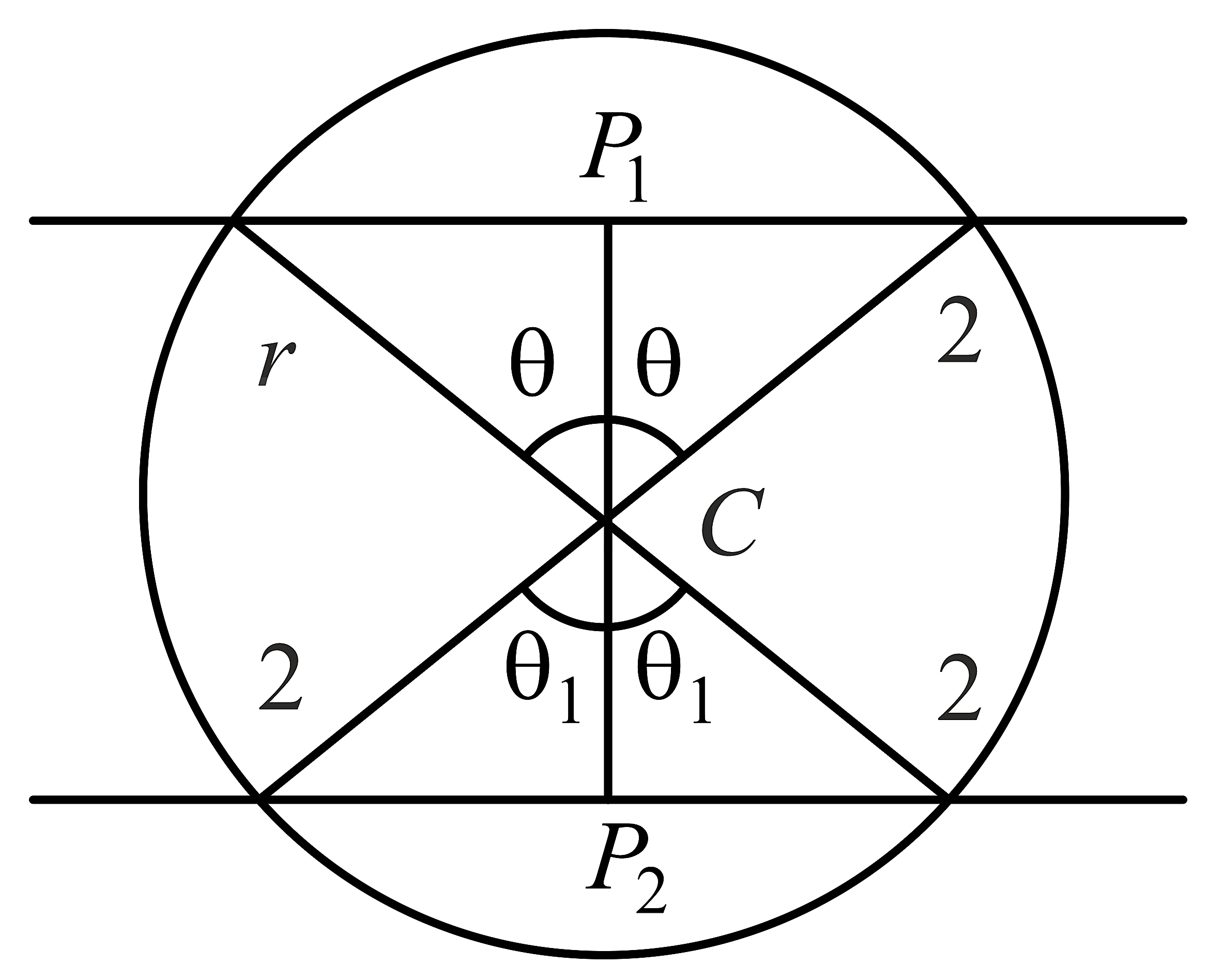

Given condition,

∴ cos⁡2θ=17 ⇒2cos2θ-1=17

⇒2cos2⁡θ=87

⇒cosθ=27

Then, CP1=rcosθ=47

Since, cos−117=sec−17, hence both the chords are at equal distance from center of the circle.

Hence, the distance between the chords =2 × 4 7 = 8 7 .
