JEE Main 2021MathematicsTrigonometric Ratios & IdentitiesMediumMCQ

JEE Main 2021 — Trigonometric Ratios & Identities Question with Solution

JEE Main 2021 (26 Aug Shift 2)

Question

A 10 inches long pencil AB with mid point C and a small eraser P are placed on the horizontal top of a table such that PC=5 inches and ∠PCB=tan-1(2). The acute angle through which the pencil must be rotated about C so that the perpendicular distance between eraser and pencil becomes exactly 1 inch is :

Choose an option

Show full solutionCorrect option: A
Correct answer
Atan-134

Step-by-step explanation

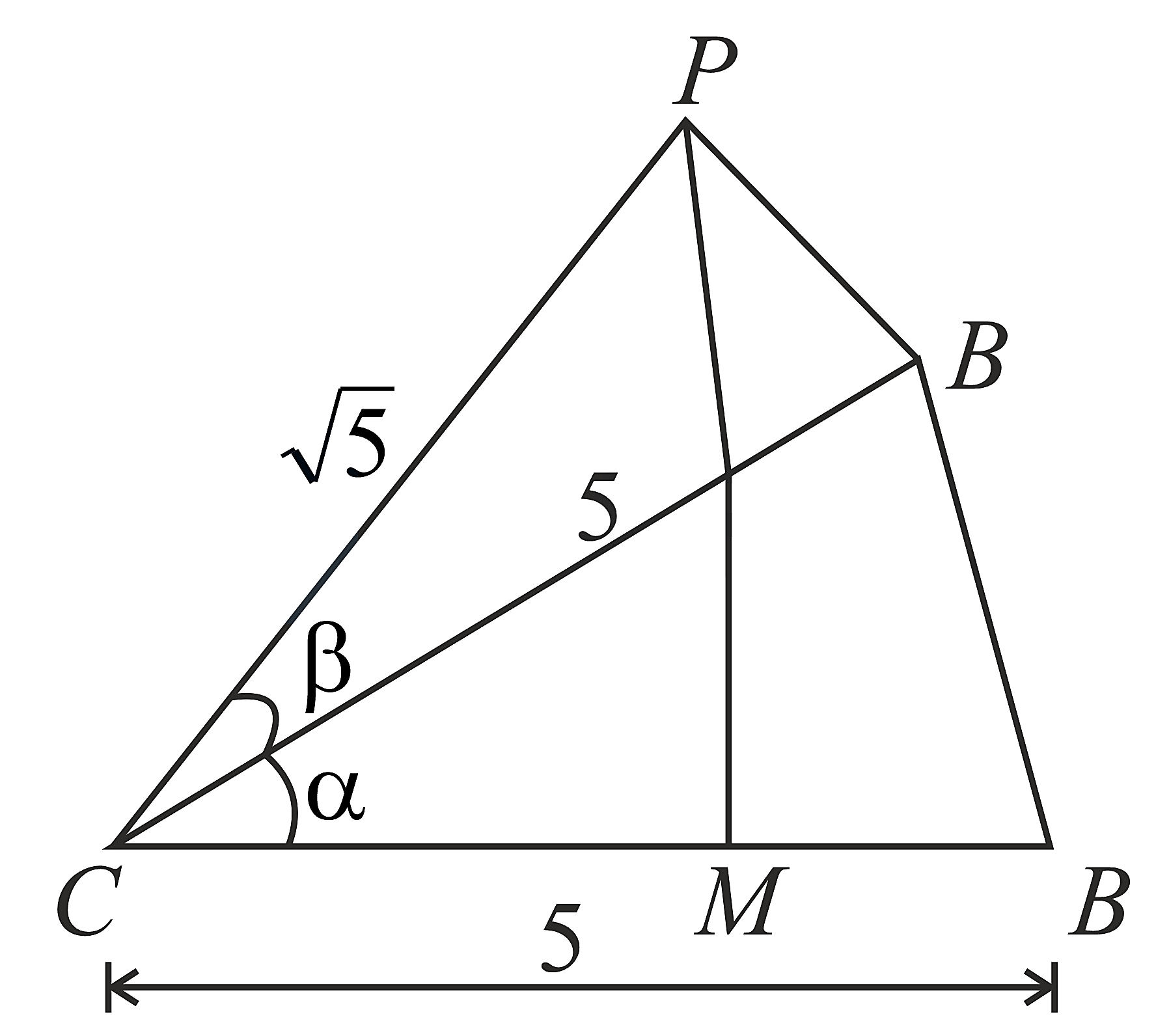

From figure,

sinβ=15tanβ=12
tan(α+β)=2tanα+β=tanα+121-tanα .12=2
α=tan-134
