JEE Main 2023PhysicsCurrent ElectricityMediumNumerical

JEE Main 2023 — Current Electricity Question with Solution

JEE Main 2023 (30 Jan Shift 2)

Question

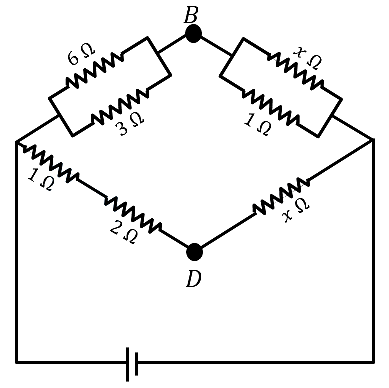

If the potential difference between B and D is zero, the value of x is 1n Ω. The value of n is ______.



Enter your answer

Show full solutionCorrect answer: 2
Correct answer
2

Step-by-step explanation

As potential difference between B & D is zero therefore it is a balanced wheatstone bridge. So, we can write

⇒R1R2=R3R4⇒6×36+31+2=x×1x+1x

⇒23=1x+1

⇒x=0.5=12

Hence, required n=2.
