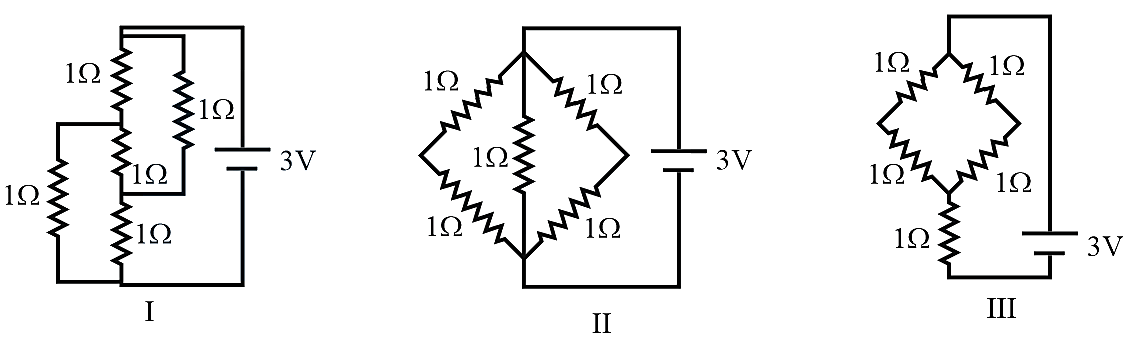

The figure shows three circuits I, II and III which are connected to a 3 V battery. If the powers dissipated by the configurations I, II and III are P1, P2 and P3 respectively, then -

Choose an option

Show full solutionCorrect option: A
Correct answer
AP2>P1>P3

Step-by-step explanation

P=V2R
P∝1R
Req for I circuit by balanced Wheatstone bridge
 R1=1 Ω

Req   for circuit II by parallel combination
1R2=12+ 12+11

 R2=12

Req for circuit III by parallel and series combination
R3=1+112+12
R3=2

so,P2>P1>P3.
