JEE Main 2024 (29 Jan Shift 1)

Question

A galvanometer having coil resistance 10 Ω shows a full scale deflection for a current of 3 mA. For it to measure a current of 8 A, the value of the shunt should be:

Choose an option

Show full solutionCorrect option: C
Correct answer
C3.75×10-3Ω

Step-by-step explanation

Given G=10 Ω, Ig=3 mA and I=8 A.

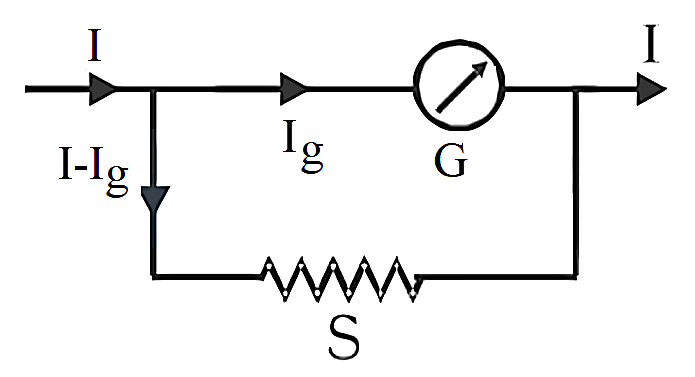

Let's consider the following figure:

From the figure, we have

IgG=I-IgS⇒S=IgGI-Ig⇒S=3×10-3108-0.003=3.75×10-3 Ω
