JEE Main 2023 (10 Apr Shift 2)

Question

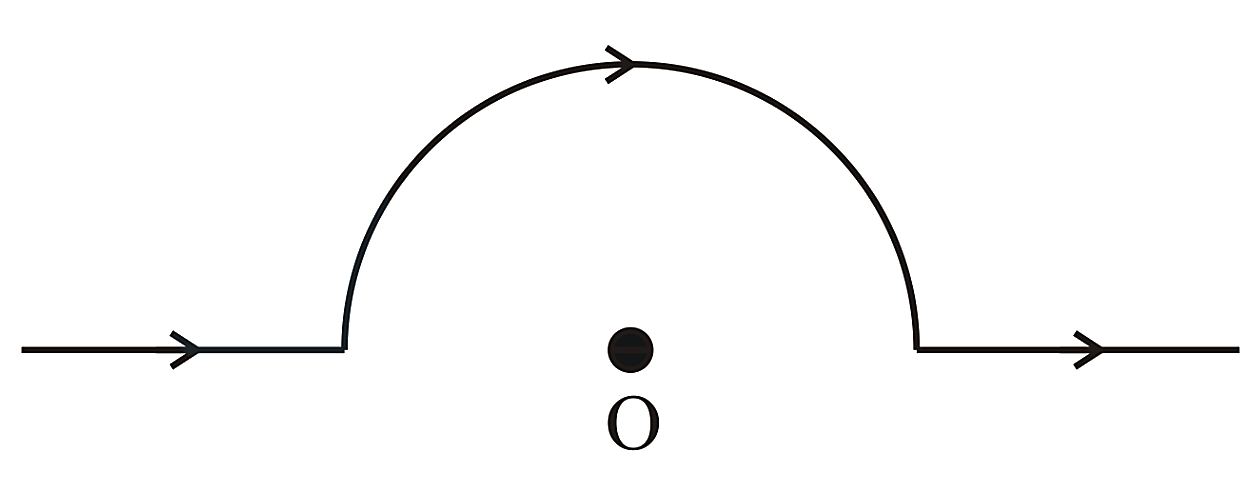

A straight wire carrying a current of 14 A is bent into a semicircular arc of radius 2.2 cm as shown in the figure. The magnetic field produced by the current at the centre O of the arc is ____ × 10–4 T

Enter your answer

Show full solutionCorrect answer: 2
Correct answer
2

Step-by-step explanation

It is given that

i=14 AR=2.2×10-2 m

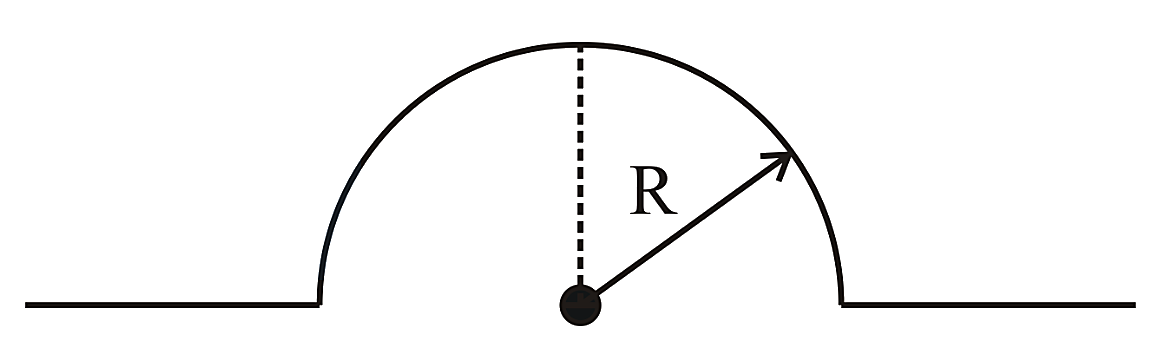

The magnetic field at the centre O is

B=μ0i4R=4π×10-7×144×2.2×10-2=2×10-4 T
