JEE Main 2019 (10 Jan Shift 1)

Question

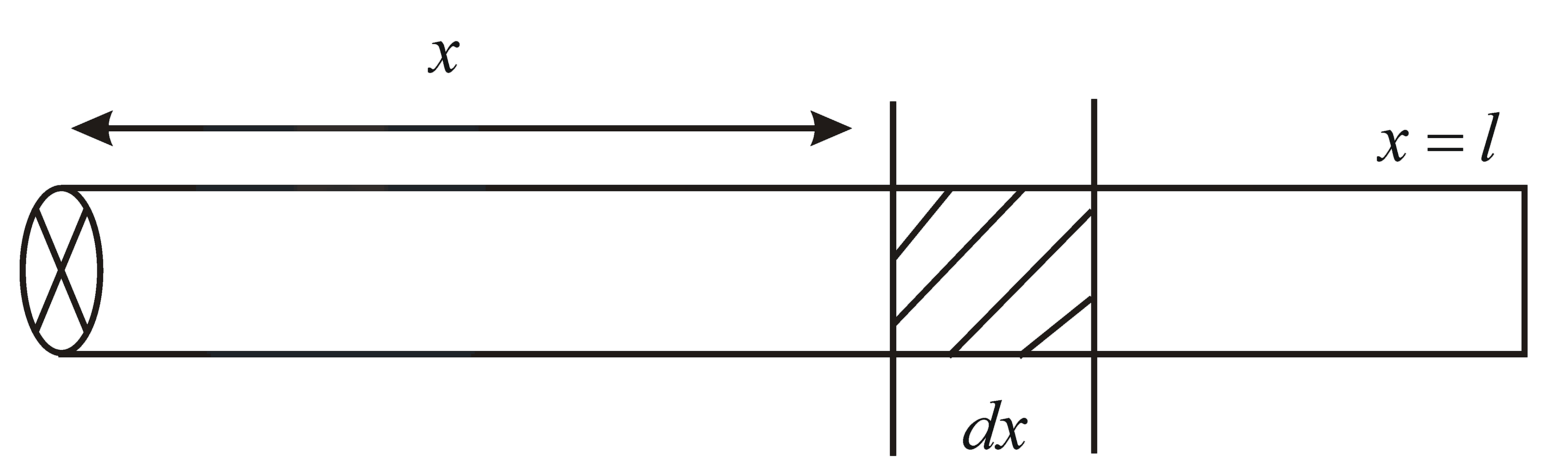

An insulating thin rod of length l has a linear charge density ρx=ρ0xl on it. The rod is rotated about an axis passing through the origin x=0 and perpendicular to the rod. If the rod makes n rotations per second, then the time averaged magnetic moment of the rod is:

Choose an option

Show full solutionCorrect option: A
Correct answer
Aπ4n ρ0l3

Step-by-step explanation

ω=2πn rad s-1



dQ=ρ dx

=ρ0lxdx

Current due to elementary charge dQ

dI=dQ ω2π

Magnetic dipole moment

dM=dI×A

∫dM=∫0lω2π×ρ0l×xdx πx2

M=π nρ0l34
