JEE Main 2023 (10 Apr Shift 1)

Question

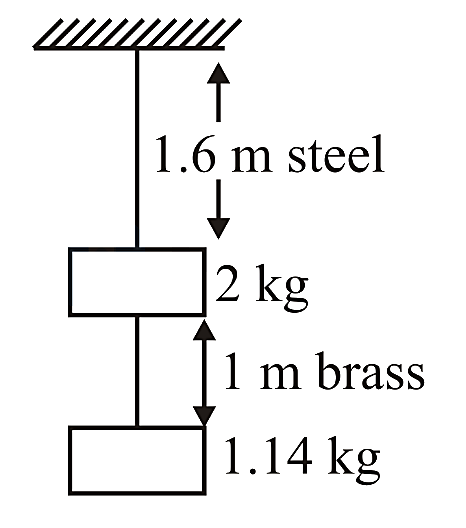

Two wires each of radius 0.2 cm and negligible mass, one made of steel and the other made of brass are loaded as shown in the figure. The elongation of the steel wire is ______10–6 m. [Young's modulus for steel =2×1011 N m–2 and g=10 m s–2]



Enter your answer

Show full solutionCorrect answer: 20
Correct answer
20

Step-by-step explanation

The force acting on steel wire F is 2+1.14 g=3.14g

From the relation of Young's modulus, it can be written

FA=YΔLL

⇒ΔL=FLAY=3.14×g×1.6π×0.22×2×1011×10-4

⇒∆L=2×10-5

⇒∆L=20×10-6 m
