JEE Main 2019 (10 Jan Shift 2)

Question

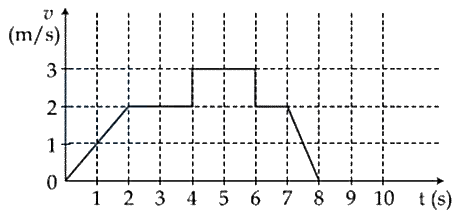

A particle starts from the origin at time t=0 and moves along the positive x-axis. The graph of velocity with respect to time is shown in figure. What is the position of the particle at time t=5s?

Choose an option

Show full solutionCorrect option: B
Correct answer
B9 m

Step-by-step explanation

Area enclosed by V-T graph=displacement (As particle moving in same direction)

12×2×2+2×2+1×3= Displacement

∴ So, displacement =9m
