JEE Main 2023 (25 Jan Shift 1)

Question

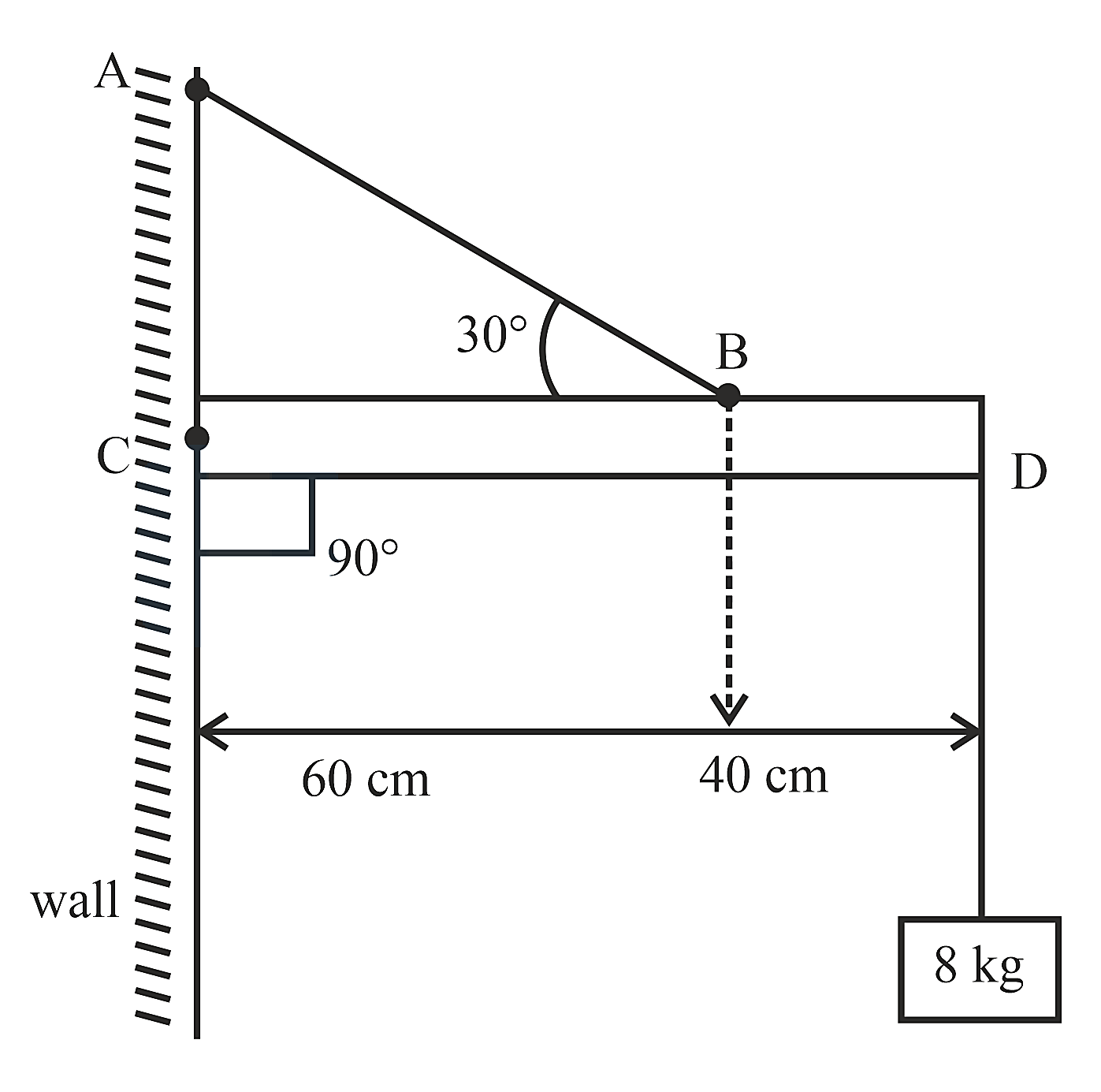

An object of mass 8 kg is hanging from one end of a uniform rod CD of mass 2 kg and length 1 m pivoted at its end C on a vertical wall as shown in figure. It is supported by a cable AB such that the system is in equilibrium. The tension in the cable is:

(Take g=10 m s-2)



Choose an option

Show full solutionCorrect option: C
Correct answer
C300 N

Step-by-step explanation

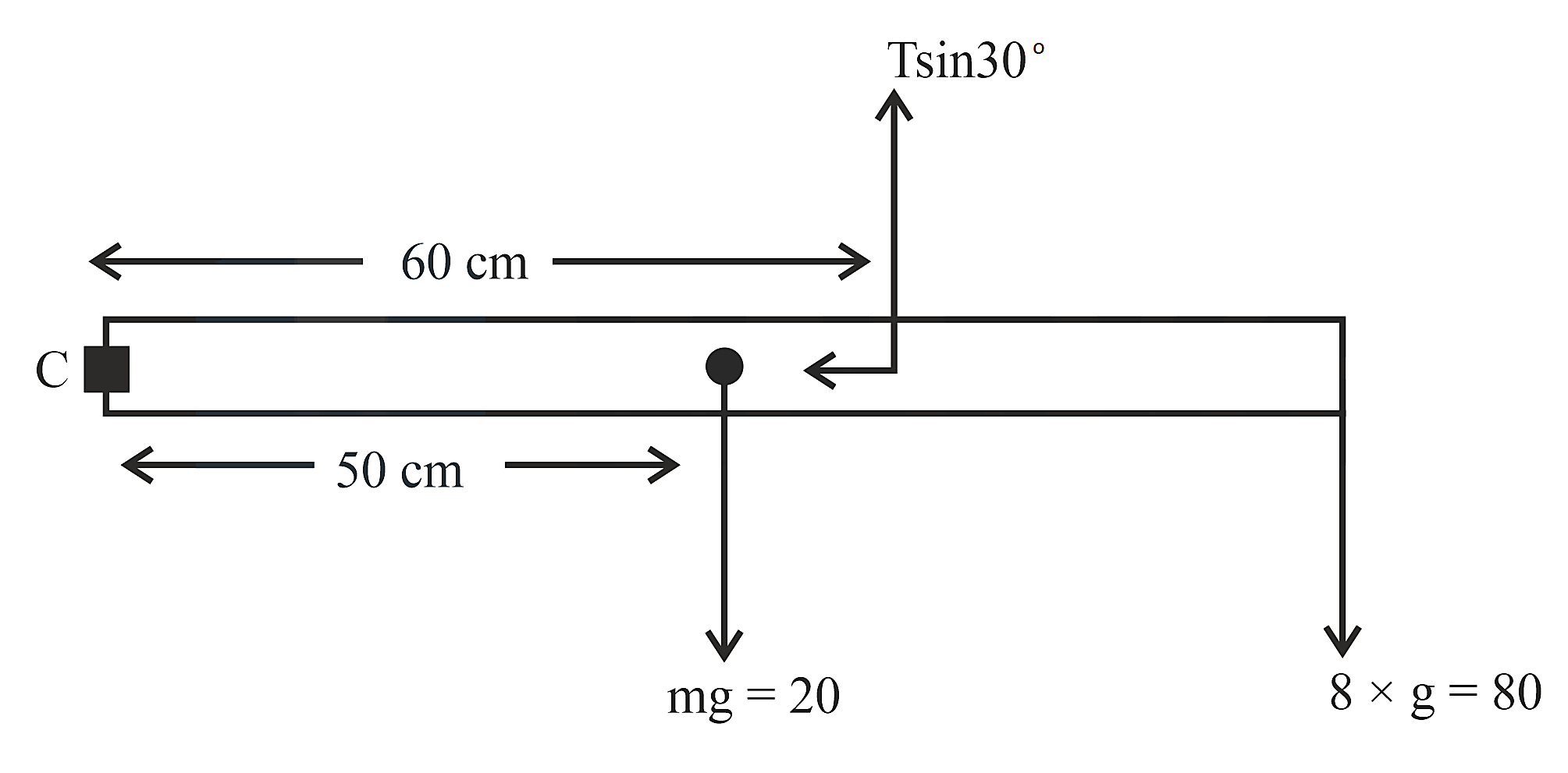

Let T be the tension in cable.

Since the system is at equilibrium, the net torque, about an axis perpendicular to the plane and passing through the point of contact of the rod and the wall, is zero. Therefore, torque about point C

T sin30°× 60=mg×50+8g×100

T2×60=20×50+80×100

⇒3T=100+800

⇒300 N.
