JEE Main 2018PhysicsRotational MotionMediumMCQ

JEE Main 2018 — Rotational Motion Question with Solution

JEE Main 2018 (08 Apr)

Question

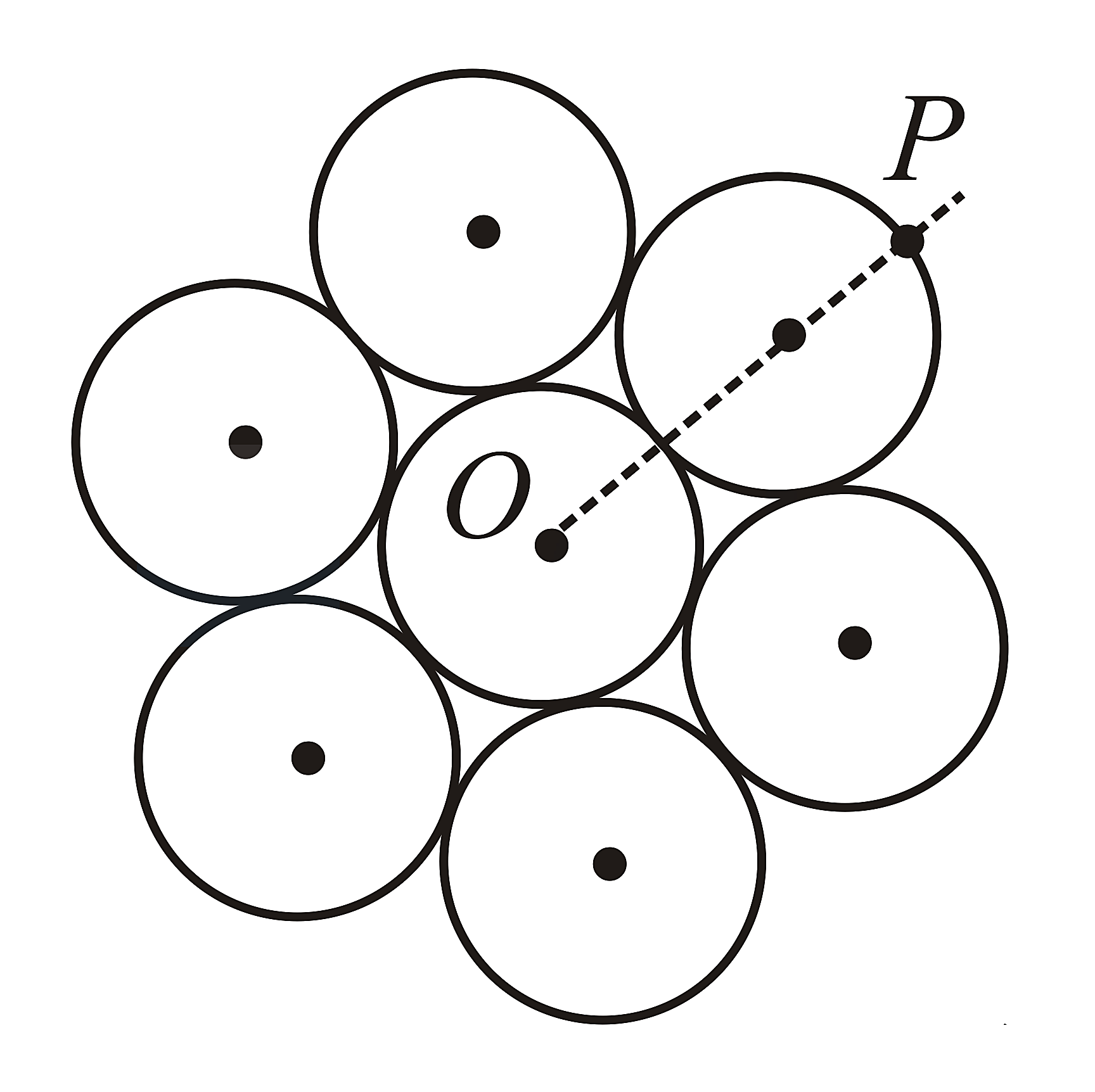

Seven identical circular planar disks, each of mass M and radius R are welded symmetrically as shown. The moment of inertia of the arrangement about the axis normal to the plane and passing through the point P is:

Choose an option

Show full solutionCorrect option: A
Correct answer
A1812MR2

Step-by-step explanation

The motion of inertia of the system about O,

12MR2+6×12MR2+6×M×2R2

⇒   I1=72MR2+24MR2

The motion of inertia of the system about P,

⇒   I1+7MD2

⇒    72MR2+24MR2+7M×3R2

⇒   1812MR2
