JEE Main 2023 — Semiconductors Question with Solution
JEE Main 2023 (29 Jan Shift 2)
Question

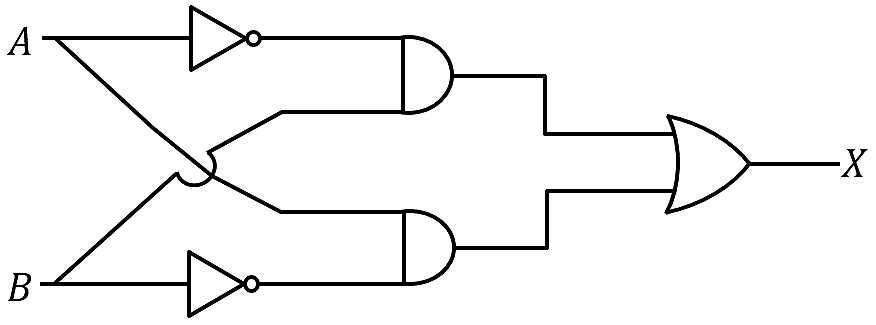

For the given logic gates combination, the correct truth table will be
Choose an option
Show full solutionCorrect option: B
| A | B | X |
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
Step-by-step explanation
A HIGH output (1) results only if all the inputs to the AND gate are HIGH (1). If not all inputs to the AND gate are HIGH, LOW output results.
But in case of OR Gate, for the output to be 1, at least input one OR two must be 1.
NOR Gate reverses the logic state.

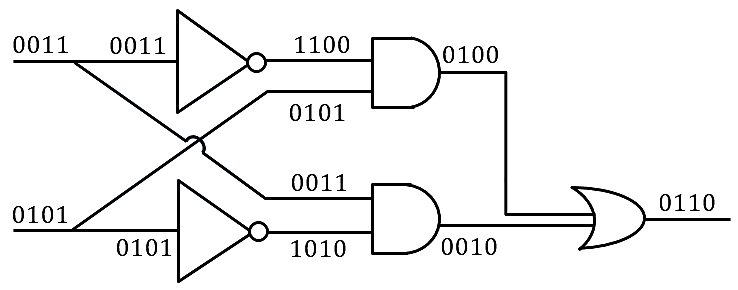

Therefore, for all possible combination of inputs, outputs at different stages will look like as given below.
