JEE Main 2017 (08 Apr Online)

Question

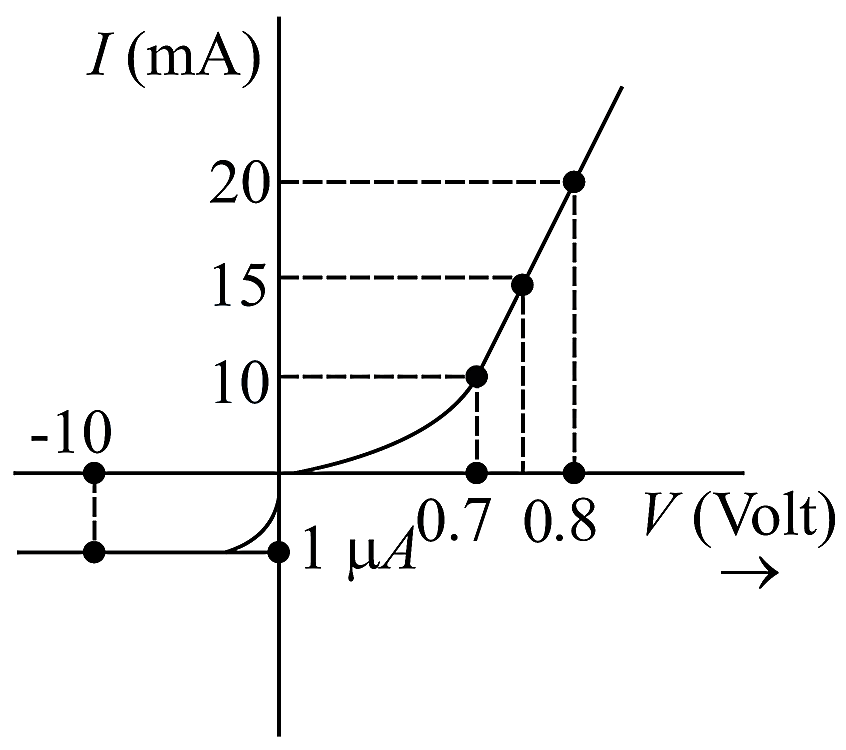

The V-I characteristic of a diode is shown in the figure. The ratio of forward to reverse bias resistance is:

Choose an option

Show full solutionCorrect option: C
Correct answer
C10-6

Step-by-step explanation

Forward bias resistance R1=0.8-0.720-10×10-3=0.110×10-3=10 Ω.

Reverse bias resistanceR2=1010-6=107 Ω.

R1R2=10-6.
