JEE Main 2024 (31 Jan Shift 2)

Question

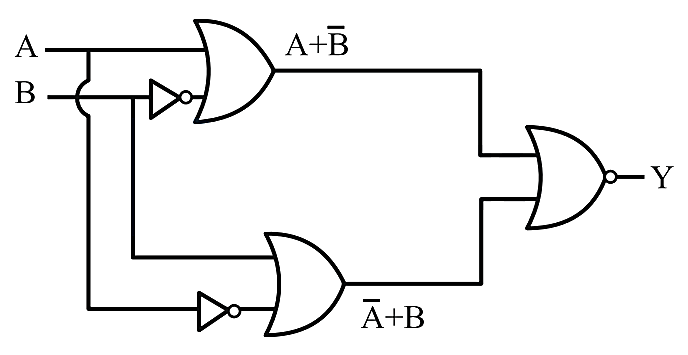

The output of the given circuit diagram is

Choose an option

Show full solutionCorrect option: C
Correct answer
C

Step-by-step explanation

If A=0; A¯=1

A=1; A¯=0

B=0; B¯=1

B=1; B¯=0

Using De Morgan's theorem, we can write

Y=A+B¯+A¯+B¯=A+B¯¯·A¯+B¯=A¯·B·A·B¯=0
