JEE Main 2019 (08 Apr Shift 2)

Question

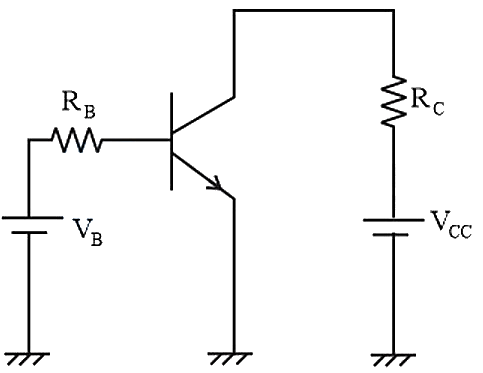

A common emitter amplifier circuit, built using an NPN transistor, is shown in the figure. Its dc current gain is 250, RC=1 kΩ and VCC=10 V . The minimum base current for VCE to reach saturation is

Choose an option

Show full solutionCorrect option: B
Correct answer
B40 μA

Step-by-step explanation



Given, β=250

RC=1000 Ω

VCC=10 V


At saturation, VCE=0

⇒ie=10 V1000 Ω=10 mA

Current gain factor, β=ieiB

⇒iB=ieβ=10 mA250

=40 μA
