JEE Main 2014 (19 Apr Online)
Question
Given, and are input terminals
Logic is
Logic is

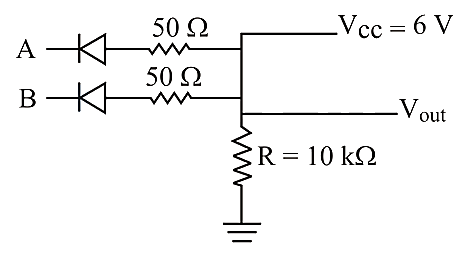

Which logic gate operation, the following circuit does?
Note: This question was awarded a bonus. option changed.
Choose an option
Show full solutionCorrect option: C
Correct answer
COutput will always be one.
Step-by-step explanation
As is directly connected to the output, the output will always be one and independent of the input.
