JEE Main 2025 — Semiconductors Question with Solution

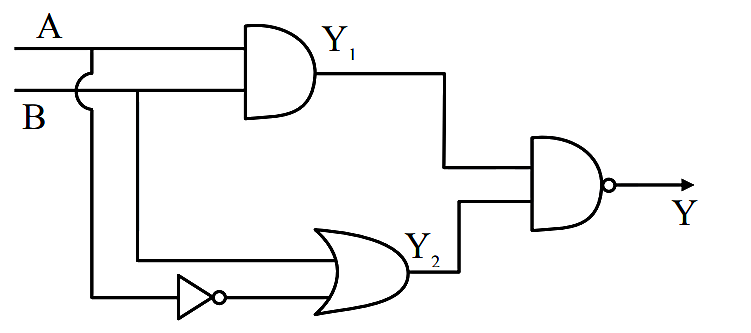

$\begin{aligned}
& \mathrm{Y}_1=\mathrm{A} \cdot \mathrm{~B}, \mathrm{Y}_2=\overline{\mathrm{A}}+\mathrm{B} \\ & \mathrm{Y}=\overline{\mathrm{Y}_1 \cdot \mathrm{Y}_2}=\overline{\mathrm{Y}}_1+\overline{\mathrm{Y}}_2 \\ & \mathrm{Y}=\overline{\mathrm{A} \cdot \mathrm{~B}}+\overline{\mathrm{A}+\mathrm{B}} \\ & \mathrm{Y}=\overline{\mathrm{A}}+\overline{\mathrm{B}}+\mathrm{A} \cdot \overline{\mathrm{~B}}
\end{aligned}$<br/>$\begin{array}{|c|c|c|} \hline A & B & Y \\ \hline 0 & 0 & 1 \\ \hline 1 & 0 & 1 \\ \hline 0 & 1 & 1 \\ \hline 1 & 1 & 0 \\ \hline \end{array}$
