JEE Main 2022PhysicsAtomic PhysicsMediumMCQ

JEE Main 2022 — Atomic Physics Question with Solution

JEE Main 2022 (25 Jun Shift 2)

Question

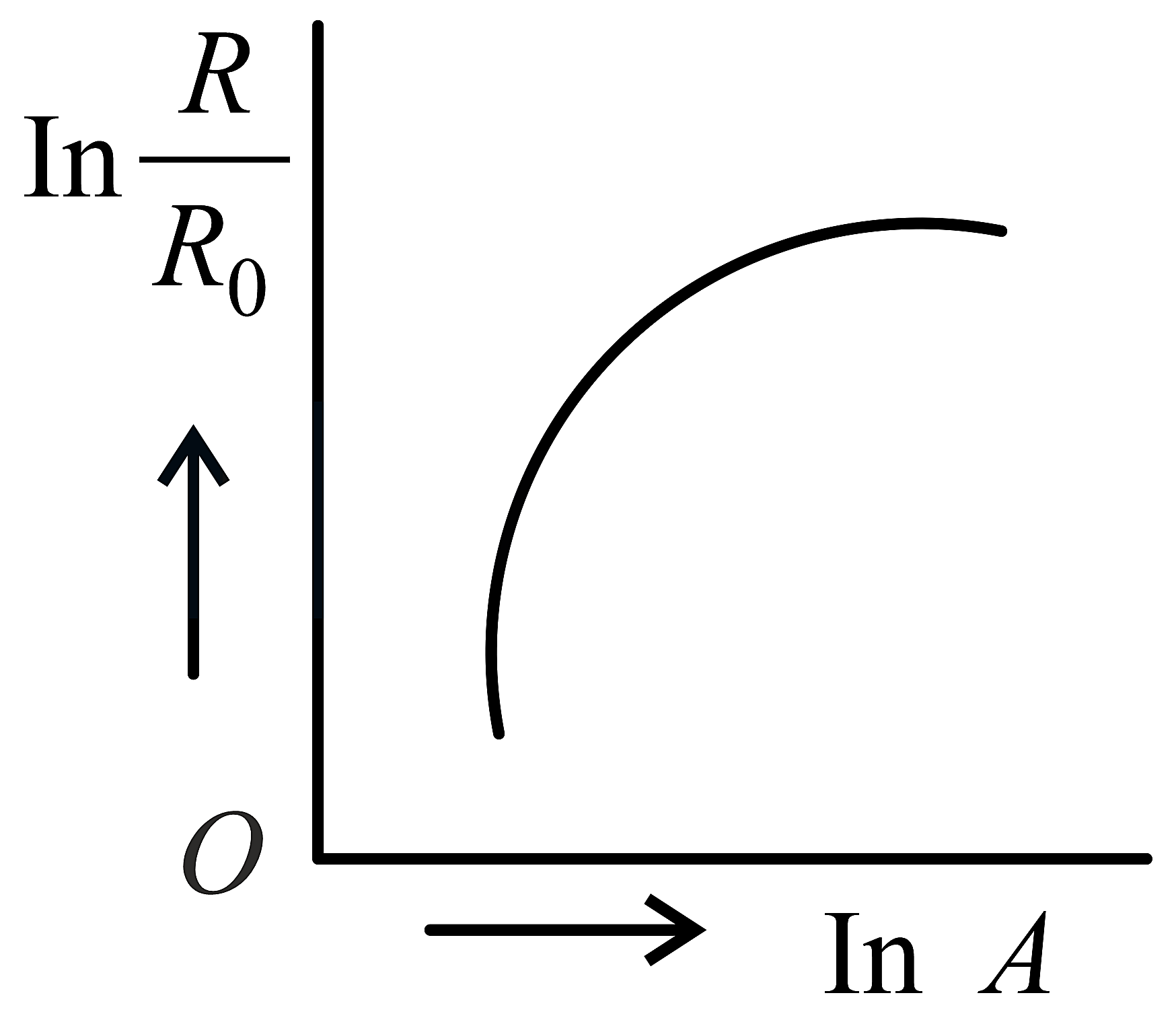

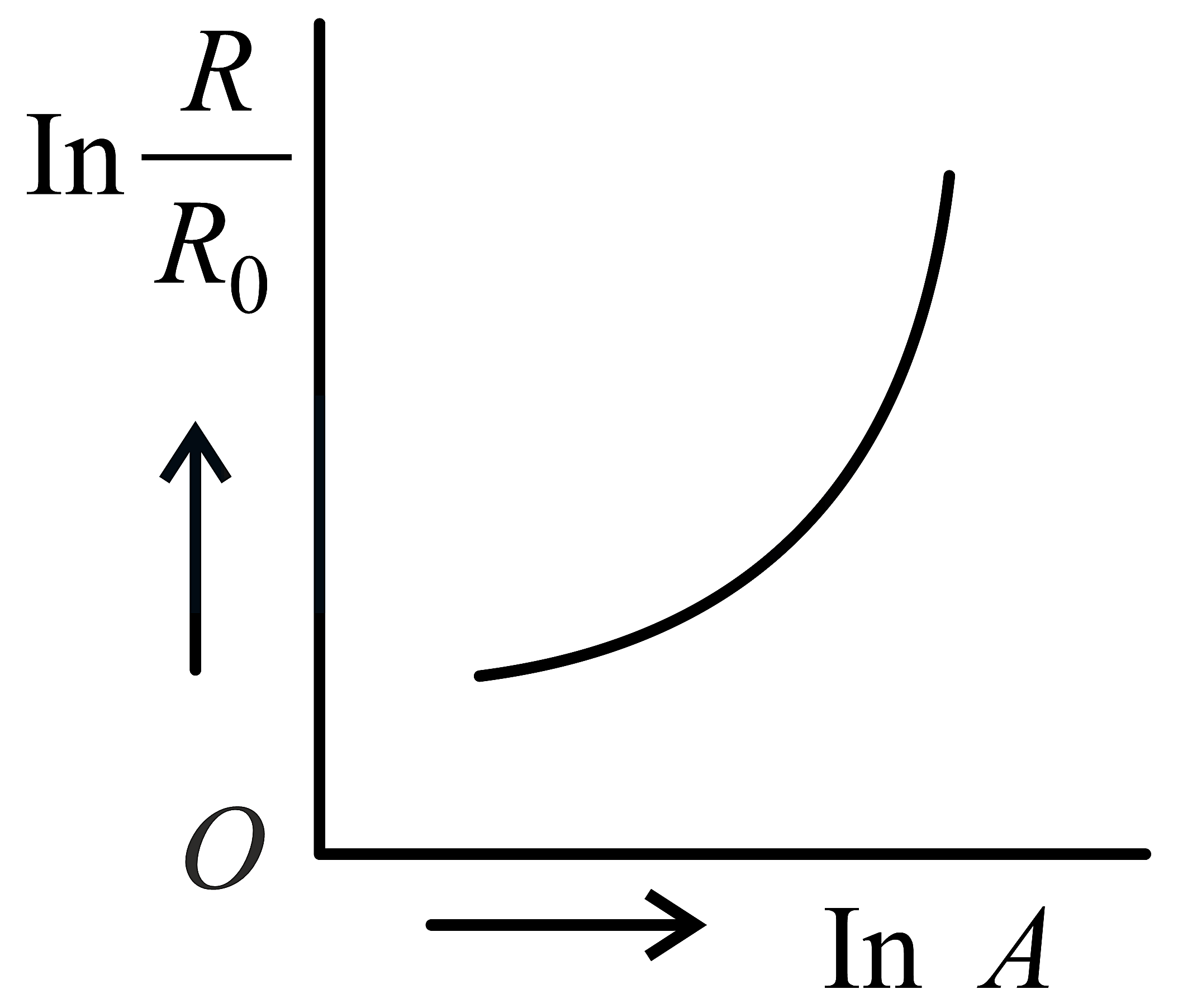

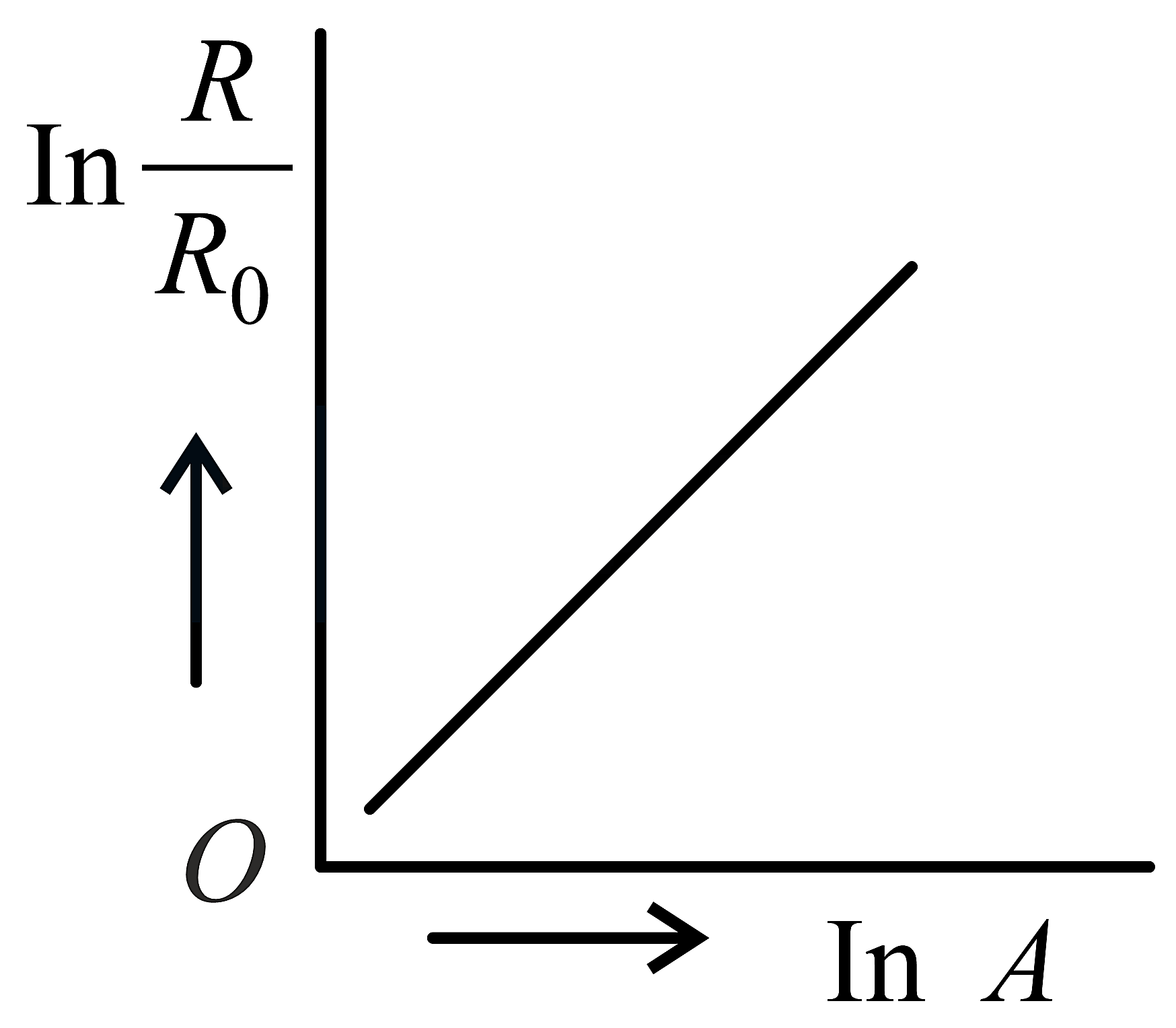

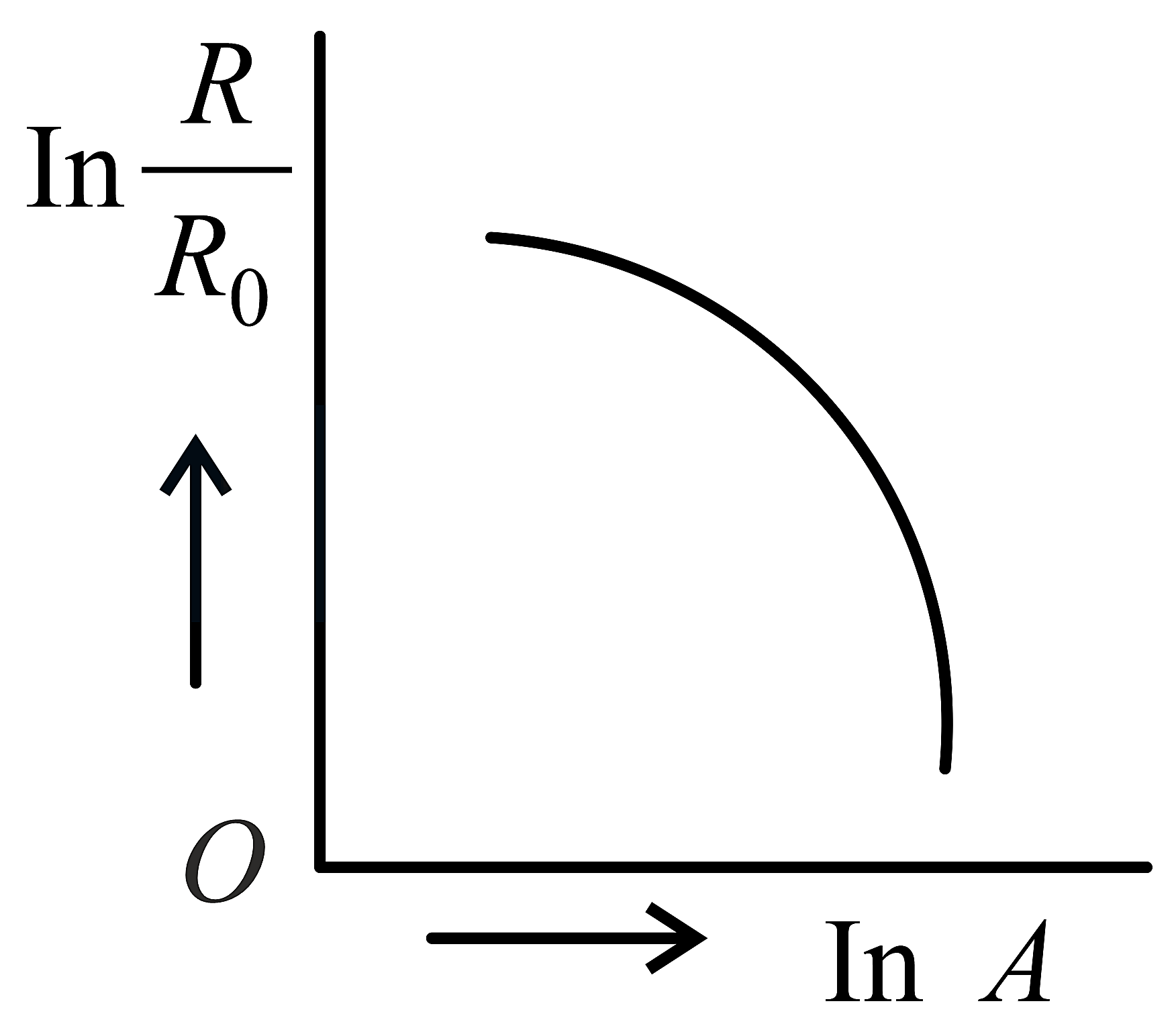

Which of the following figure represents the variation of lnRR0 with lnA (if R= radius of a nucleus and A= its mass number)

Choose an option

Show full solutionCorrect option: B
Correct answer
B

Step-by-step explanation

We know the relation between radius and atomic mass number is R=R0A13 ⇒lnR=lnR0+13lnA

⇒lnRR0=13lnA
It is similar to y=mx which is equation of line passing through origin.
