JEE Main 2021 (01 Sep Shift 2)

Question

For the given circuit the current i through the battery when the key in closed and the steady state has been reached is

Choose an option

Show full solutionCorrect option: A
Correct answer
A10 A

Step-by-step explanation

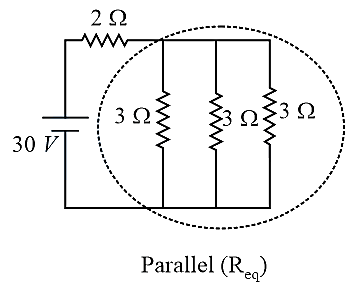

In a steady state, the inductor behaves as a conducting wire. So, the equivalent circuit becomes,

1Req=1R1+1R2+1R3=13+13+13=1⇒Req=1 Ω

so, the circuit becomes,

⇒I=303=10 A
