In a metre bridge experiment the balance point is obtained if the gaps are closed by 2 Ω and 3 Ω. A shunt of X Ω is added to 3 Ω resistor to shift the balancing point by 22.5 cm. The value of X is ______.

Enter your answer

Show full solutionCorrect answer: 2
Correct answer
2

Step-by-step explanation

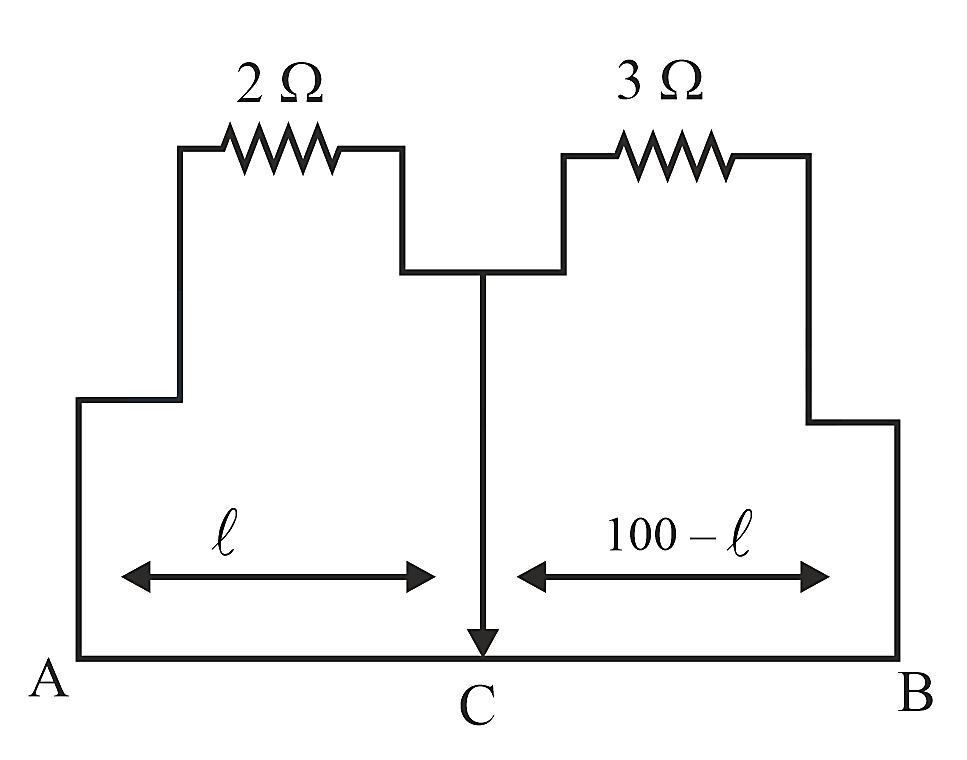

Case 1: No shunt is added

The initial balancing length l of the bridge is,

23=l100-l

⇒200-2l=3l⇒l=40 cm

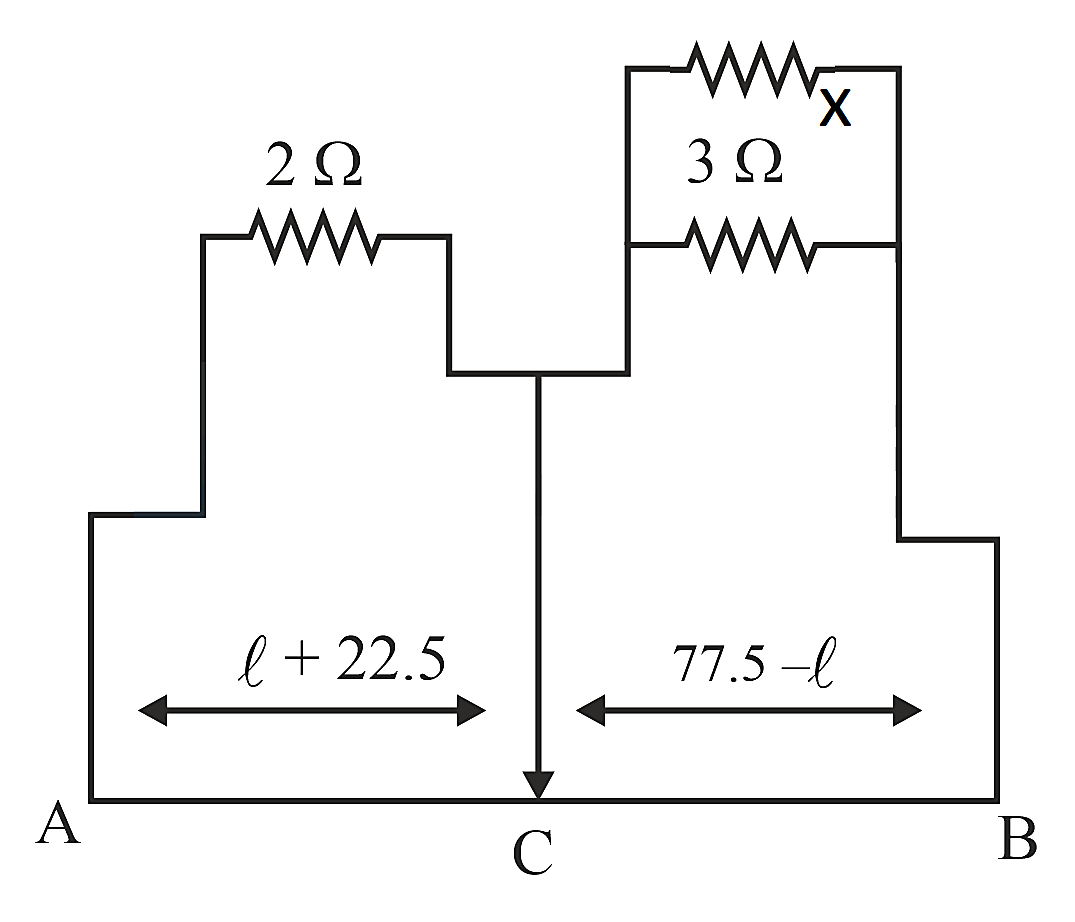

Case 2: When shunt is added

The new balancing length is, l1=22.5+40=62.5 cm

So, 62.537.5=23X3+X

⇒X=2.
