JEE Main 2019 (10 Jan Shift 1)

Question

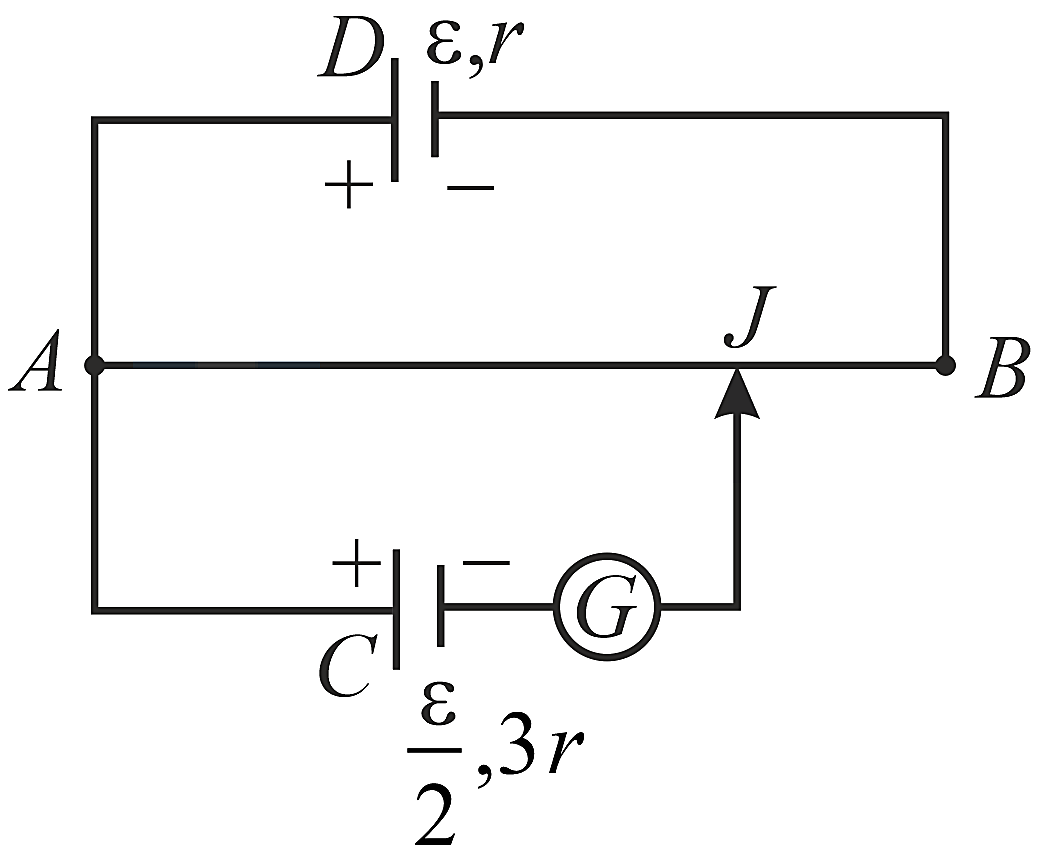

A potentiometer wire AB having length L and resistance 12r is joined to a cell D of emf ε and internal resistance r. A cell C having EMF ε/2 and internal resistance 3r is connected. The length AJ, at which the galvanometer, as shown in the figure, shows no deflection is

Choose an option

Show full solutionCorrect option: D
Correct answer
D1324L

Step-by-step explanation

Potential difference across AJ=I RAJ,

=ε13r·12rL·x

For no current in galvanometer,

ε2= potential difference across AJ

ε2=12ε13Lx

x=13L24
