JEE Main 2014PhysicsExperimental PhysicsMediumMCQ

JEE Main 2014 — Experimental Physics Question with Solution

JEE Main 2014 (19 Apr Online)

Question

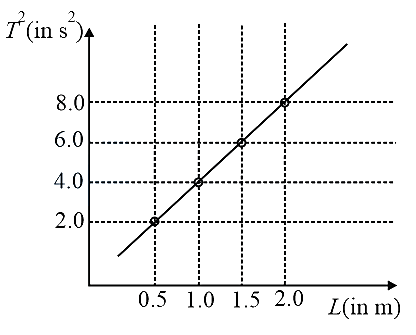

In an experiment to determine the gravitational acceleration g of a place with the help of a simple pendulum, the measured time period squared is plotted against the string length of the pendulum in the figure. What is the value of g at the place?

Choose an option

Show full solutionCorrect option: B
Correct answer
B9.87 m s-2

Step-by-step explanation

T=2πLg

⇒   g=4π2LT2

T2L=4π2g=tanθ=slope of graph

⇒   g=4π2tanθ

∵  tanθ=8−22−0.5=61.5=4

⇒   g=4π24=(3.14)2=π2=3.142=9.87 m s-2
