JEE Main 2022PhysicsLaws of MotionMediumMCQ

JEE Main 2022 — Laws of Motion Question with Solution

JEE Main 2022 (26 Jun Shift 2)

Question

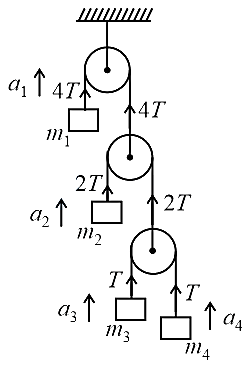

In the arrangement shown in figure a1,a2,a3 and a4 are the accelerations of masses m1,m2,m3 and m4 respectively. Which of the following relation is true for this arrangement?

Choose an option

Show full solutionCorrect option: A
Correct answer
A4a1+2a2+a3+a4=0

Step-by-step explanation

The figure shows the tension acting on each string in the system.

∑T→·a→=0

⇒4Ta1+2Ta2+Ta3+Ta4=0

⇒4a1+2a2+a3+a4=0
