JEE Main 2024 (30 Jan Shift 1)

Question

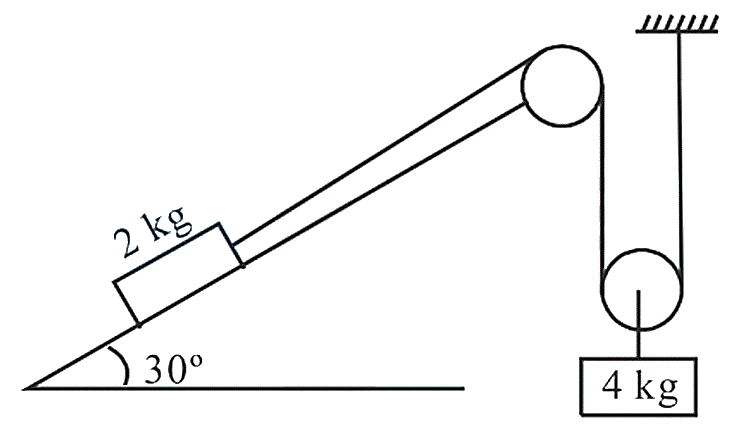

All surfaces shown in figure are assumed to be frictionless and the pulleys and the string are light. The acceleration of the block of mass 2 kg is:

Choose an option

Show full solutionCorrect option: B
Correct answer
Bg3

Step-by-step explanation

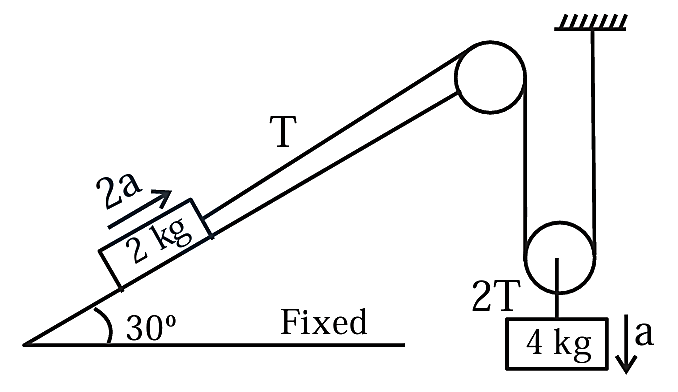

For 4 kg block:

40-2T=4a⇒T=20-2a

For 2 kg block:

T-10=4a⇒20-2a-10=4a⇒10=6a⇒a=106=g6 m s-2

Acceleration of the block of mass 2 kg, 2a=g3 m s-2.
