JEE Main 2017 (09 Apr Online)

Question

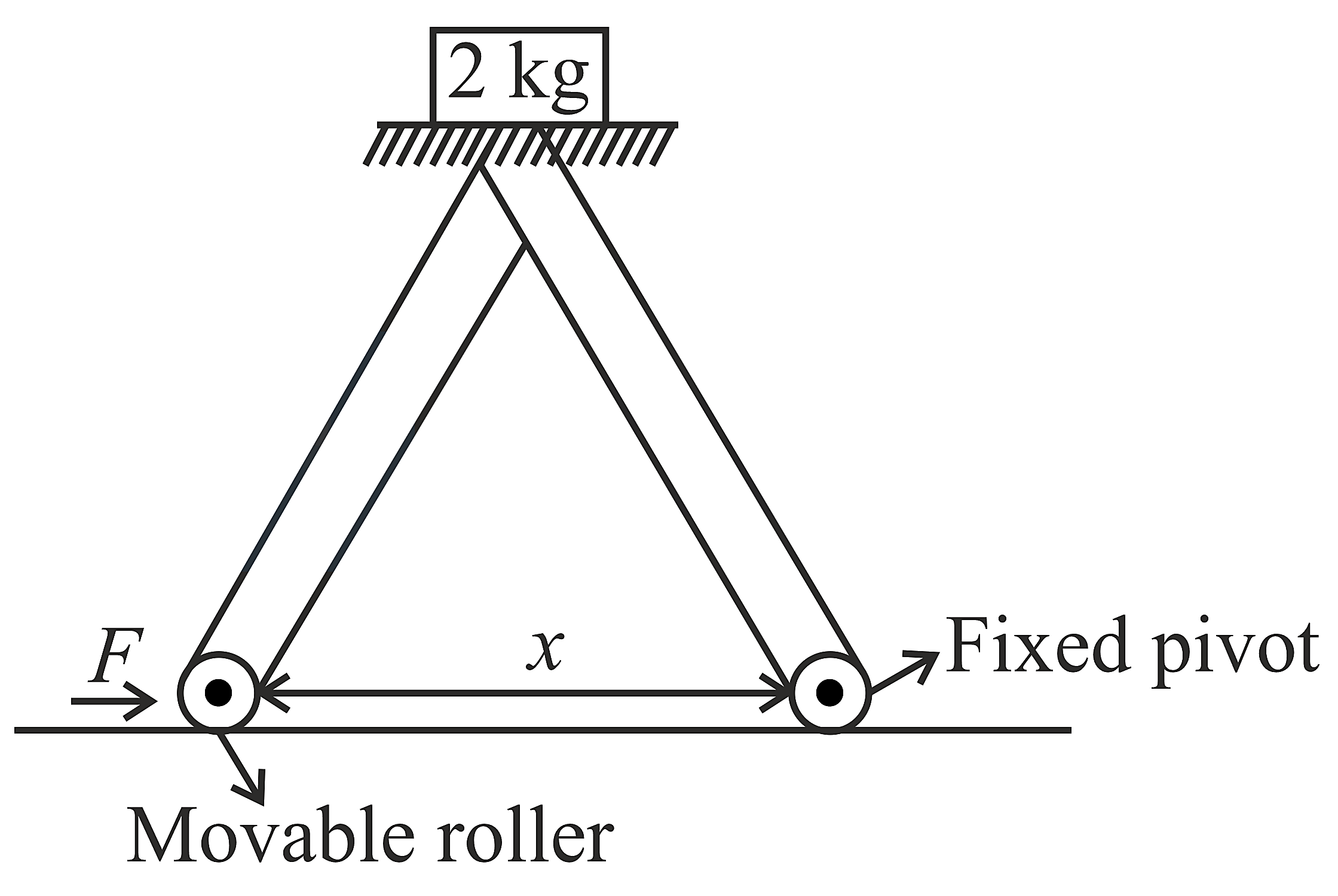

The machine as shown has 2 rods of length 1 m connected by a pivot at the top. The end of one rod is connected to the floor by a stationary pivot and the end of the other rod has roller that rolls along the floor in a slot. As the roller goes back and forth, a 2 kg weight moves up and down. If the roller is moving towards right at a constant speed, the weight moves up with a :

Choose an option

Show full solutionCorrect option: C
Correct answer
CDecreasing speed

Step-by-step explanation

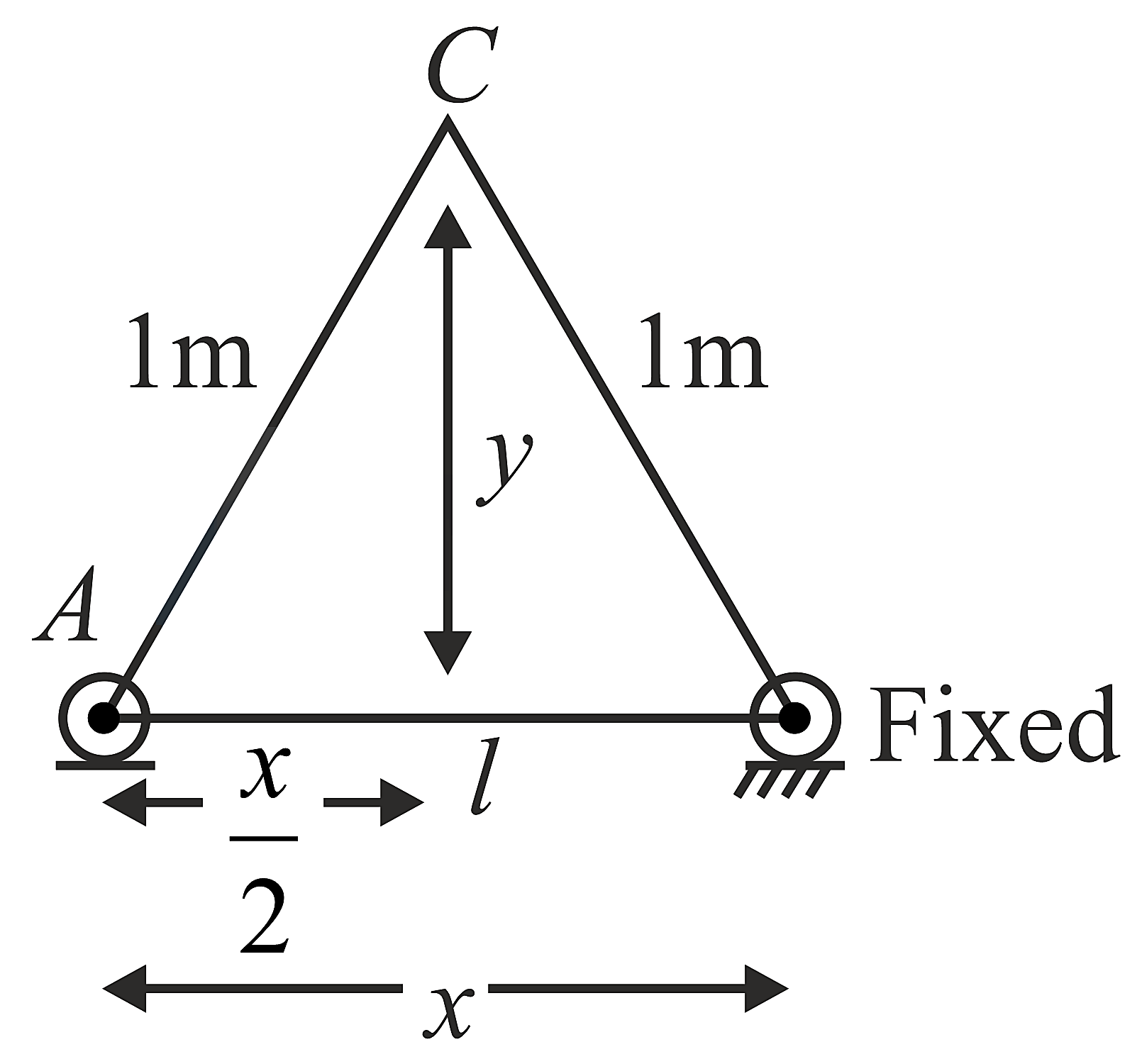

vA=dxdt=d2lcosθdt=-2lsinθdθdt and

Vertical velocity of B, vB=dydt=dlsinθdt=lcosθdθdt

vAvB=-2tanθ⇒vB=-vAcotθ2

θ→increase

cotθ→decrease

Hence, vB→decrease.
