JEE Main 2017 (02 Apr)

Question

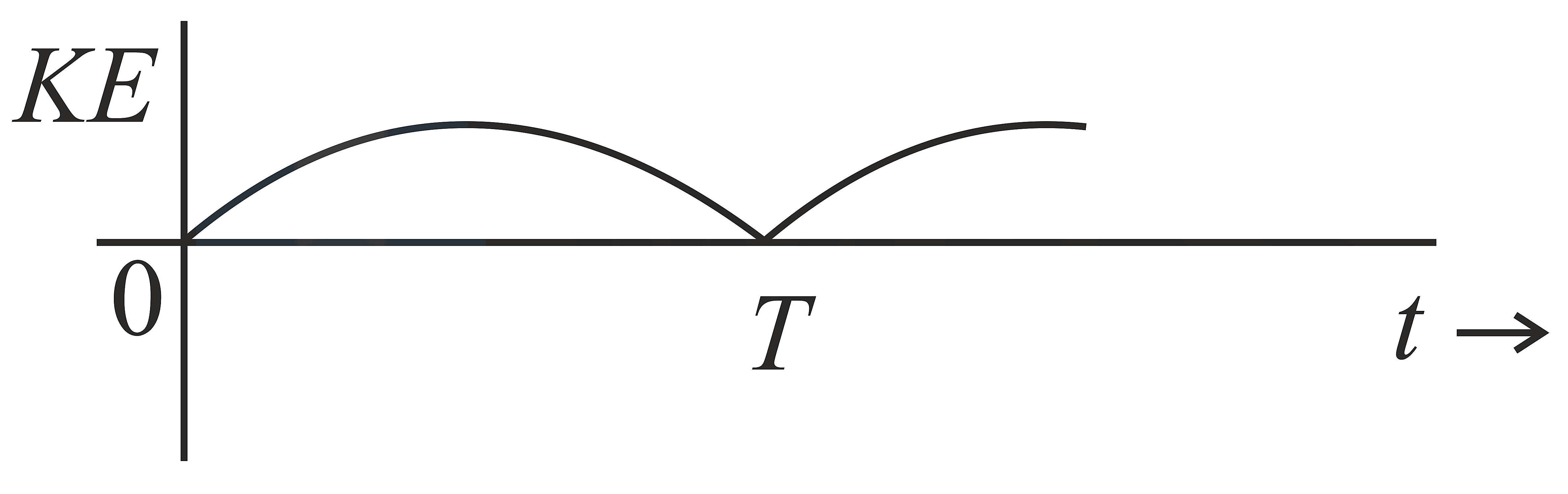

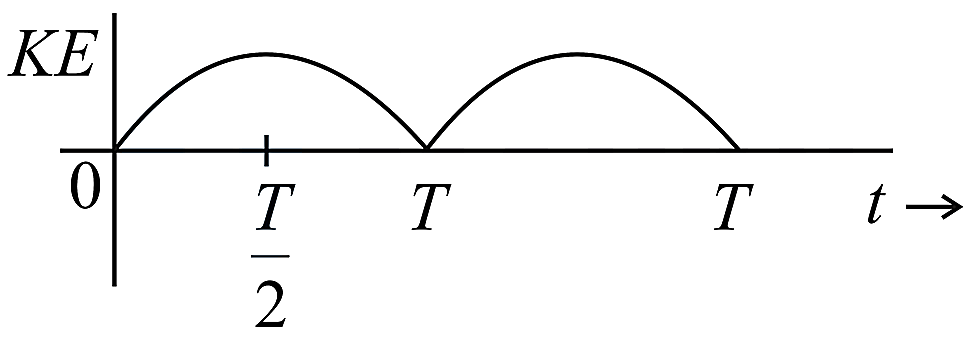

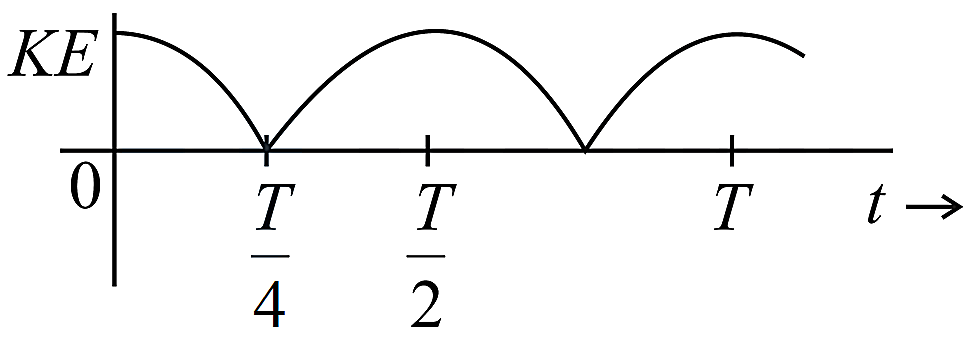

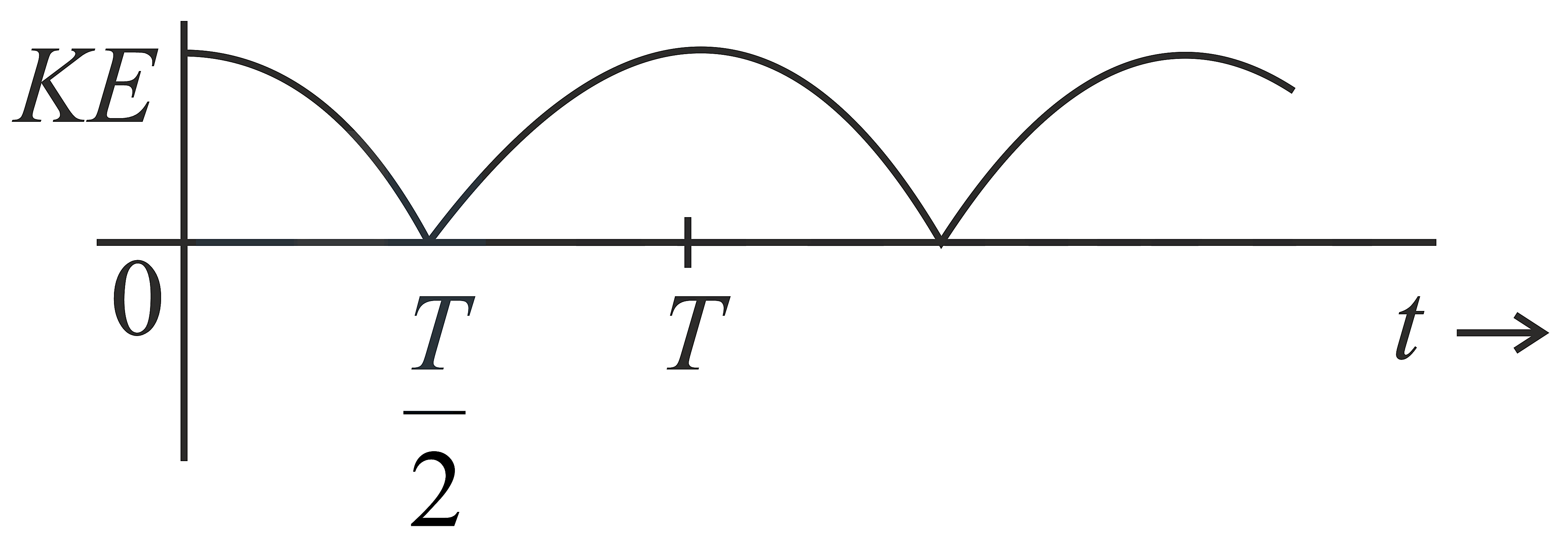

A particle is executing simple harmonic motion with a time period T. At time t=0, it is at its position of equilibrium. The kinetic energy - time graph of the particle will look like:

Choose an option

Show full solutionCorrect option: A
Correct answer
A

Step-by-step explanation

x=Asin⁡ω t

v=dxdt=a ωcos⁡ω t

K.E.=12m v2

=12 m A2ω2cos2⁡ ωt

=12 m A2ω2cos2⁡2πT t

At t=0, K.E. is maximum.

The period of K.E. graph is half of the period of displacement graph.

Comment:- The points on the graph of x-axis should be differentiable.

In all option mentioned, the graph has cusps at the points on x-axis.
